Technology

The development of a FEL for EuPRAXIA must overcome the intrinsic limitations of plasma-accelerated electrons, such as the large energy spread (typically a hundred times larger than conventional linacs) and 1 mrad divergence. To handle this issue, some electron beam manipulation has to be performed, either prior to the undulator with a demixing chicane or directly inside the undulator using a transverse gradient undulator.

Transverse gradient undulators are considered to be a promising solution for FELs utilizing electron beams with large energy spread. However dispersing the particles increases the beam size in the direction of dispersion (usually
horizontal direction) and reduces the transverse coherence of the FEL radiation.

A particular interest concerns the push towards shorter undulator periods with high magnetic fields. Laser plasma acceleration naturally produces short electron bunches, therefore shorter undulator periods are needed to minimize the slippage and avoid the light from escaping the electron bunch along the undulator.

Shortening the undulator period means reducing the magnet size, which results in a lower magnetic field.  Achieving a sufficient magnetic field sets requirements for the magnetic material and the undulator gap. In-vacuum undulators, which avoid the gap limitation imposed by the beam pipe, may be used to reach smaller gaps and hence higher magnetic fields.

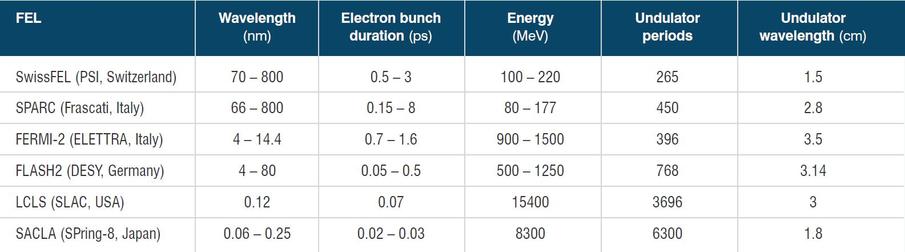

FELs driven by conventional electron accelerators are currently used in material sciences, nanotechnology, electronic materials processing, microfabrication, and biochemistry, to name but a few of their applications.

One of the trends of FEL technology is the development of compact FEL designs, by replacing the constituting elements with alternative accelerator concepts, new undulator designs, or novel FEL schemes. In EuPRAXIA, the interest is to investigate the application of plasma accelerators as drivers for a FEL, paving the way towards FEL light sources of laboratory size for femtosecond time-resolved experiments. The combination of short-period undulators with high on-axis magnetic fields could enable plasma-driven FELs at water-window photon energies with relatively low-energy electron beams of 1 GeV.

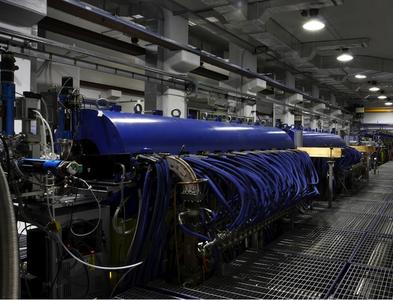

SPARC_LAB Free Electron Laser at Laboratori Nazionali di Frascati (Italy).

Credit: INFN-LNF

Compact FELs.

EuPRAXIA is developing strategies for short period undulators, such as in-vacuum cryogenic and superconducting undulators. Technologies for transverse gradient devices are also being investigated. Cryogenic permanent magnet undulators offer several technological advantages over on-air warm permanent magnet undulators, currently used in FEL facilities world-wide.

Ultrafast science.

The ultrashort x-ray pulses made available by the plasma accelerator-driven FEL open up a whole new range of possibilities to measure ultrafast processes in nature that can be analyzed at the electronic level without perturbation, e.g. time-resolved photoelectron spectroscopy, single shot x-ray diffraction of biomolecules, proving warm dense matter, etc.


Fast photon detection technology.

The detector technology for ultrafast photon science has to be adapted to the plasma beam features; therefore EuPRAXIA will foster progress in ultrafast photon science detection technology.

Free-Electron Lasers

A Free Electron Laser (FEL) is a source of coherent (i.e. laser-like) radiation. It works by sending a beam of high-energy electrons down a tube surrounded by a series of magnets with alternate polarities. This magnet array, called undulator, causes the electrons to undergo a sinusoidal motion and emit synchrotron radiation due to their acceleration in the transverse plane. The emitted radiation interferes constructively in the successive oscillations, creating a beam of coherent tunable high-intensity x-rays. A low-energy x-ray beam may be used to ‘seed’ the FEL emission. Planar undulators lead to a linear polarization in the plane of the electrons.
The periodic magnetic field of an undulator is created by either permanent magnets or electromagnets (superconducting or warm magnets) placed next to each other and separated by equal distance. The FEL performance depends on the beam properties and undulator quality.

CHallenges

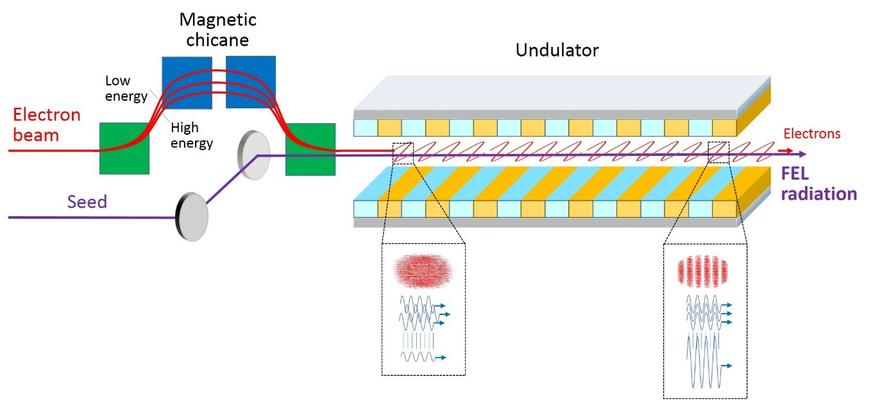

Diagram: Scheme of a Free Electron Laser
